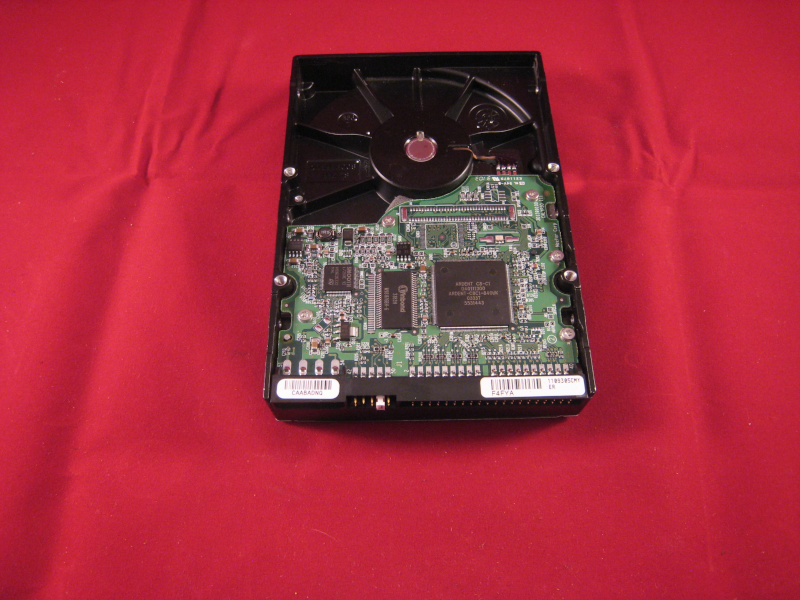

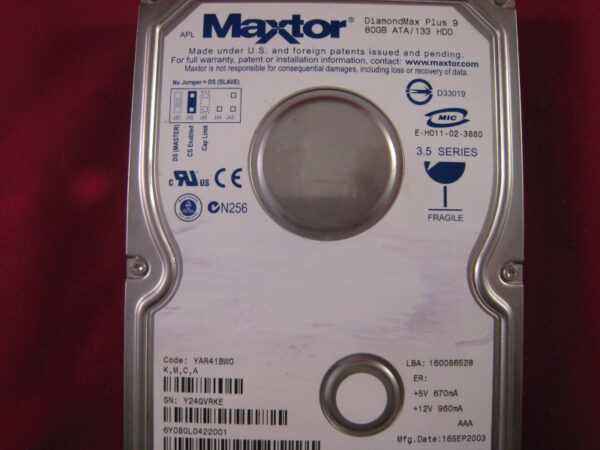

This is a used Maxtor DiamondMax Plus 9 Hard Drive (YAR41BW0) from a working system. In good working condition.
| SPECS – Maxtor DiamondMax Plus 9 | ||
| GENERAL | Capacity | 80 GB |
| Features | Fluid Dynamic Bearing (FDB) motor, Data Protection System (DPS), Quiet Drive Technology (QDT), Shock Protection System (SPS) | |
| Interface | ATA-133 | |
| Buffer Size | 8 MB | |
| Weight | 1.32 lbs | |
| Manufacturer | Seagate Technology | |
| POWER DEVICE | Type | none |
| INTERFACE PROVIDED | Qty | 1 |

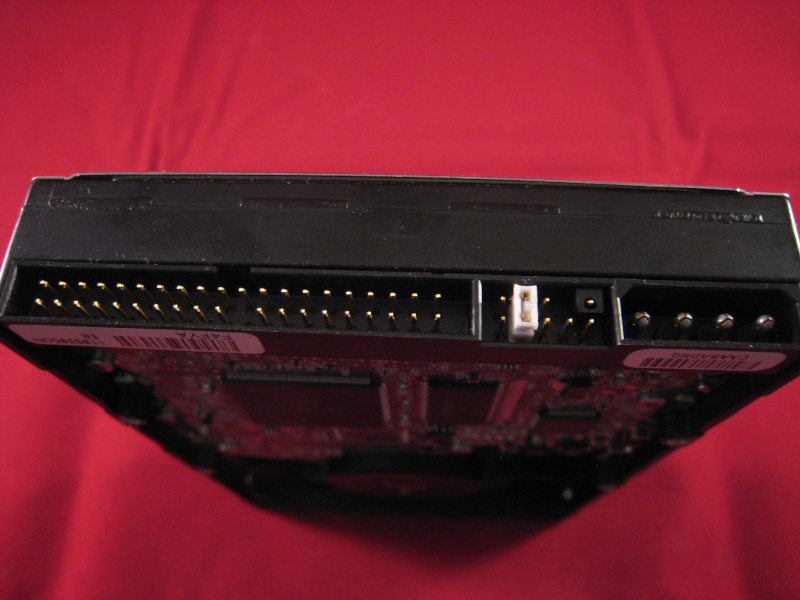

| Connector Type | 40 pin IDC | |
| Storage Interface | ATA-133 | |
| Interface | ATA-133 | |
| EXPANSION & CONNECTIVITY | Interfaces | 1 x ATA-133 – 40 pin IDC |
HARD DRIVE – Maxtor DiamondMax Plus 9 |
Form Factor | 3.5″ x 1/3H |
| Interface Type | ATA-133 | |
| Spindle Speed | 7200 rpm | |
| Features | Data Protection System (DPS), Fluid Dynamic Bearing (FDB) motor, Quiet Drive Technology (QDT), Shock Protection System (SPS) | |
| Hard Drive Type | internal hard drive | |
| Form Factor (Short) | 3.5″ | |
| Form Factor (metric) | 8.9 cm x 1/3H | |
| Form Factor (Short) (metric) | 8.9 cm | |
| Storage Interface | ATA-133 | |
| Interface | ATA-133 | |
| Average Seek Time | 9 ms | |
| Average Latency | 4.17 ms | |
| Data Transfer Rate | 133 MBps | |
| Buffer Size | 8 MB | |
| Non-Recoverable Errors | 1 per 10^15 | |
| Start / Stop Cycles | 50000 | |
| PERFORMANCE | Seek Time | 9 ms (average) |
| Drive Transfer Rate | 133 MBps (external) | |
| Average Latency | 4.17 ms | |
| Spindle Speed | 7200 rpm | |
| STORAGE CONTROLLER (2ND) | Type | none |
| ENVIRONMENTAL PARAMETERS | Min Operating Temperature | 41° F |
| Max Operating Temperature | 131° F | |
| Sound Emission | 31 dB | |
| HEADER | Brand | Maxtor |
| Product Line | Maxtor DiamondMax Plus | |
| Model | 9 | |
| Packaged Quantity | 1 | |
| Compatibility | PC | |
| BAY REQUIRED | Type | internal |
| Form Factor | 3.5″ x 1/3H | |
| Form Factor (metric) | 8.9 cm x 1/3H | |
| Total Qty | 1 | |
| DIMENSIONS & WEIGHT | Width | 4 in |
| Depth | 5.7 in | |
| Height | 1 in | |
| Weight | 1.32 lbs | |
| SLOT REQUIRED | Type | none |
| SERVICE & SUPPORT | Type | 3 years warranty (expired) |
| SERVICE & SUPPORT DETAILS | Type | limited warranty (expired) |
| Full Contract Period | 3 years (expired) | |
| RELIABILITY | Non-Recoverable Errors | 1 per 10^15 |
| Start / Stop Cycles | 50000 | |
| GENERAL | Manufacturer | Seagate Technology |
