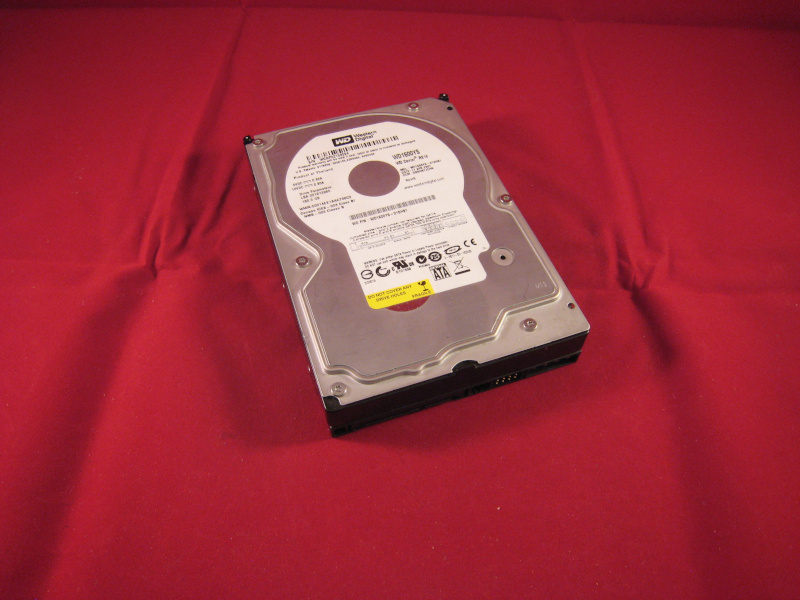

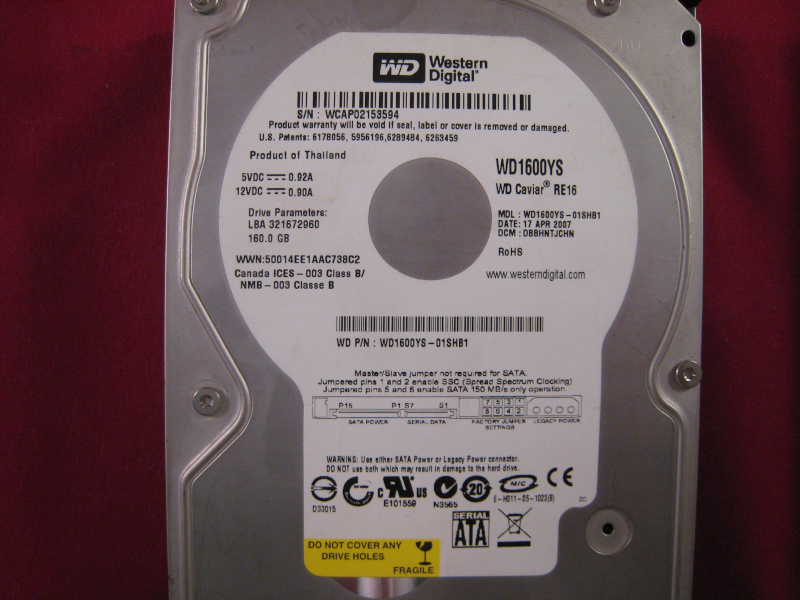

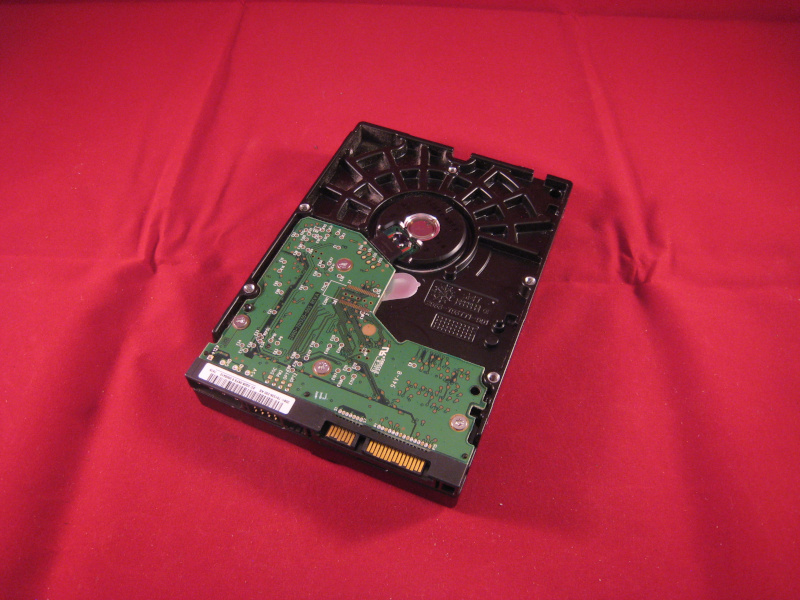

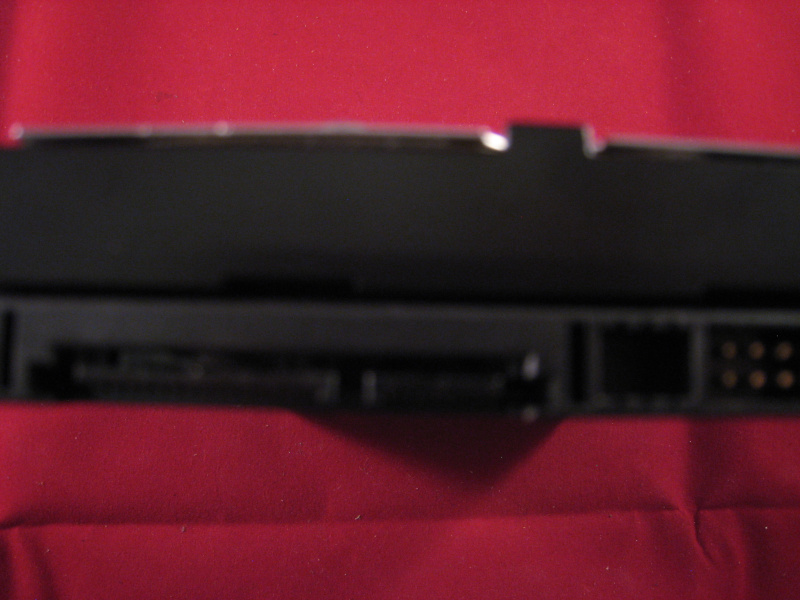

This is a used Western Digital IDE Hard Drive (WD1600YS) from a working computer. It is in good working condition.
Western Digital 160GB 7200 RPM SATA hard drive WD1600YS version
WD1600YS-23SHB0 is a 160GB 7200 RPM SATA drive by Western Digital WD1600YS version.
The WD1600YS-23SHB0 provides higher interconnect speeds, scalability, and reliability, surpassing the technology’s originally intended applications.
These disk drives are extensively used in environments where scalability and cost are primary driving factors.
WD1600YS-23SHB0 has a mean time between failure (MTBF) of 1.2 million hours.
Western Digital Technical Details:
- Hard Disk Model: WDC WD1600YS
- Disk Family: RE
- Form Factor: 3.5″
- Capacity: 160 GB (160 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Drive Ready Time (typical): 9 seconds
- Average Seek Time: 8.9 ms
- Track To Track Seek Time: 2.0 ms
- Full Stroke Seek Time: 21.0 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 730 grams (1.61 pounds)
- Acoustic (Idle): 2.8 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 3.3 Bel
- Required Power For Spinup: 1250 mA
- Power Required (Seek): 9.5 W
- Power Required (Idle): 8.75 W
- Power Required (Standby): 1.6 W
- Manufacturer: Western Digital Corporation
